|199 CZK||189 CZK||179 CZK||169 CZK|
|8.10 EUR||7.70 EUR||7.30 EUR||6.90 EUR|

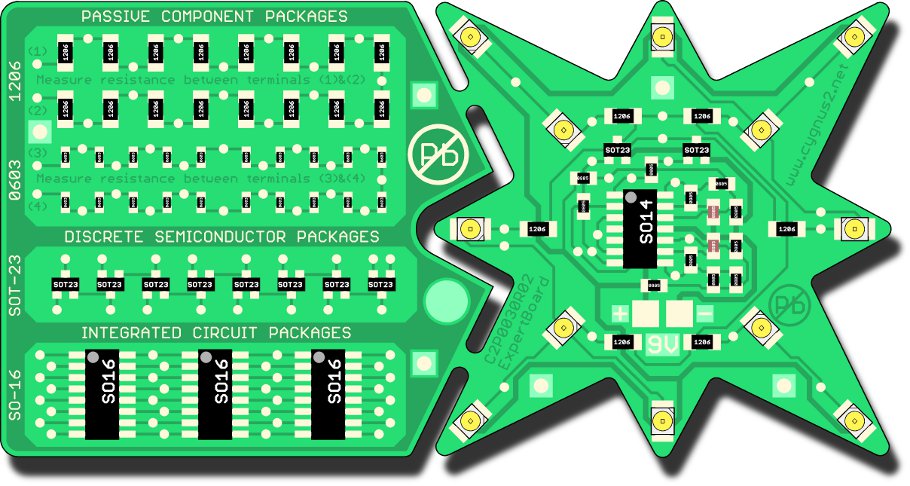

The electronic kit SMT consists of two sections – one section with non-functional circuit and one section with functional circuit. It is an excellent tool for soldering training including working with circuit diagram and assembly drawing. Once finalized, it works as a light effect - flickering star with 12 LEDs. Each component is equipped with test points allowing additional testing of solder points and soldered components.
- FR4 single-sided printed circuit board with green solder resist and HAL
- board size 51,4 x 100 mm, board thickness 1,0 mm / 1,6 mm
- SMD packages 0603, 0805, 1206 / 0204 (Minimelf), SOT-23, 3014 / 0805 (LED) / PLCC-2, SO-14 / SO-16 / SO-8
- SMD package quantity 81, technology – SMT only
- function – light effect – flickering star with 12 LEDs
