|549 CZK||499 CZK||449 CZK||399 CZK|
|22.40 EUR||20.40 EUR||18.30 EUR||16.30 EUR|

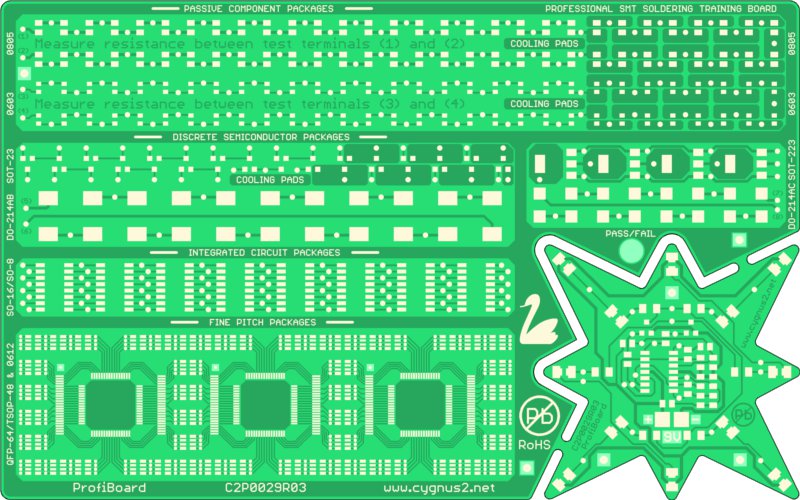

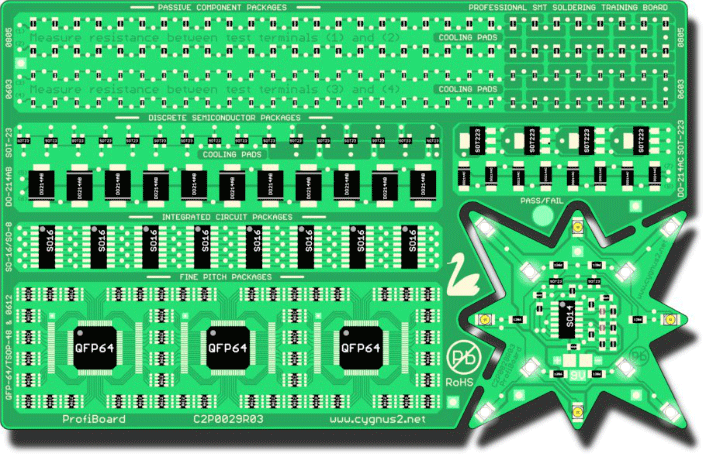

The advanced electronic kit especially designed for professional soldering training to gain experience and skills in manual mounting and soldering of printed circuit boards in SMT technology. As cost-effective solution, the electronic kit is intended for use in company training centers and technical schools. The electronic kit contains SMD components in an optimum size and quantity in order to allow gaining experience and skills in a short time. The SMD components are arranged into the sections. There is a stand-alone section - functional electronic circuit. Once finalized, it works as a light effect - flickering star with 12 LEDs. Each component is equipped with test points allowing additional testing of solder points and soldered components.
- FR4 single-sided printed circuit board with green solder resist and HAL
- board size 160 x 100 mm, board thickness 1,6 mm
- SMD packages 0603, 0612, 0805, 1206 / 0204 (Minimelf), 3014 / 0805 (LED) / PLCC-2, SOT-23, SOT-223, DO-214AC, DO-214AB, SO-14 / SO-16 / SO-8, QFP-64 / TSOP-48
- SMD package quantity 252, technology – SMT only
- function – light effect – flickering star with 12 LEDs
